Aqua Phase Control Panel Switches and Functions

The Aqua Phase Control Panel is located on top of the cabinet at the front of the machine.
The following table provides a brief description of the purpose of each of the switches.

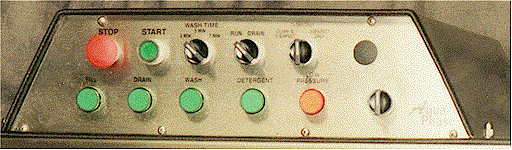

Control Panel Pic

(Optional Digital Temperature Display shown)



Control Panel Switch

Options/Function

"STOP" Button When pressed, will stop all Aqua Phase wash functions
"START" Button Must be pressed to start any Aqua Phase wash function
WASH TIME Selector Switch Allows you to select the length of wash:

"3 MIN" = Three minute wash cycle

"5 MIN" = Five minute wash cycle

"7 MIN" = Seven minute wash cycle

"RUN/DRAIN" Selector Switch "RUN": Set to "RUN" to wash an item.

"DRAIN": Set to "DRAIN" to drain the water in the machine. The water should be drained when you are done washing for the day or if you relocate the machine. In order for the "DRAIN" function to work, the Wash Mode switch must be set to "CLEAN & DISINFECT" or "CLEAN ONLY".

WASH MODE Selector Switch "CLEAN & DISINFECT": When this mode is selected, Aqua Phase will perform a complete wash and rinse for the time specified on the WASH TIME Time Selector Switch. It will then automatically apply disinfectant solution.

"CLEAN ONLY": When this mode is selected, Aqua Phase will perform a complete wash and rinse cycle for the length of time specified on the WASH TIME Selector Switch. It will not apply disinfectant.

"DISINFECT ONLY": When this mode is selected, Aqua Phase will apply disinfectant solution only. It will not wash or rinse.
